Features

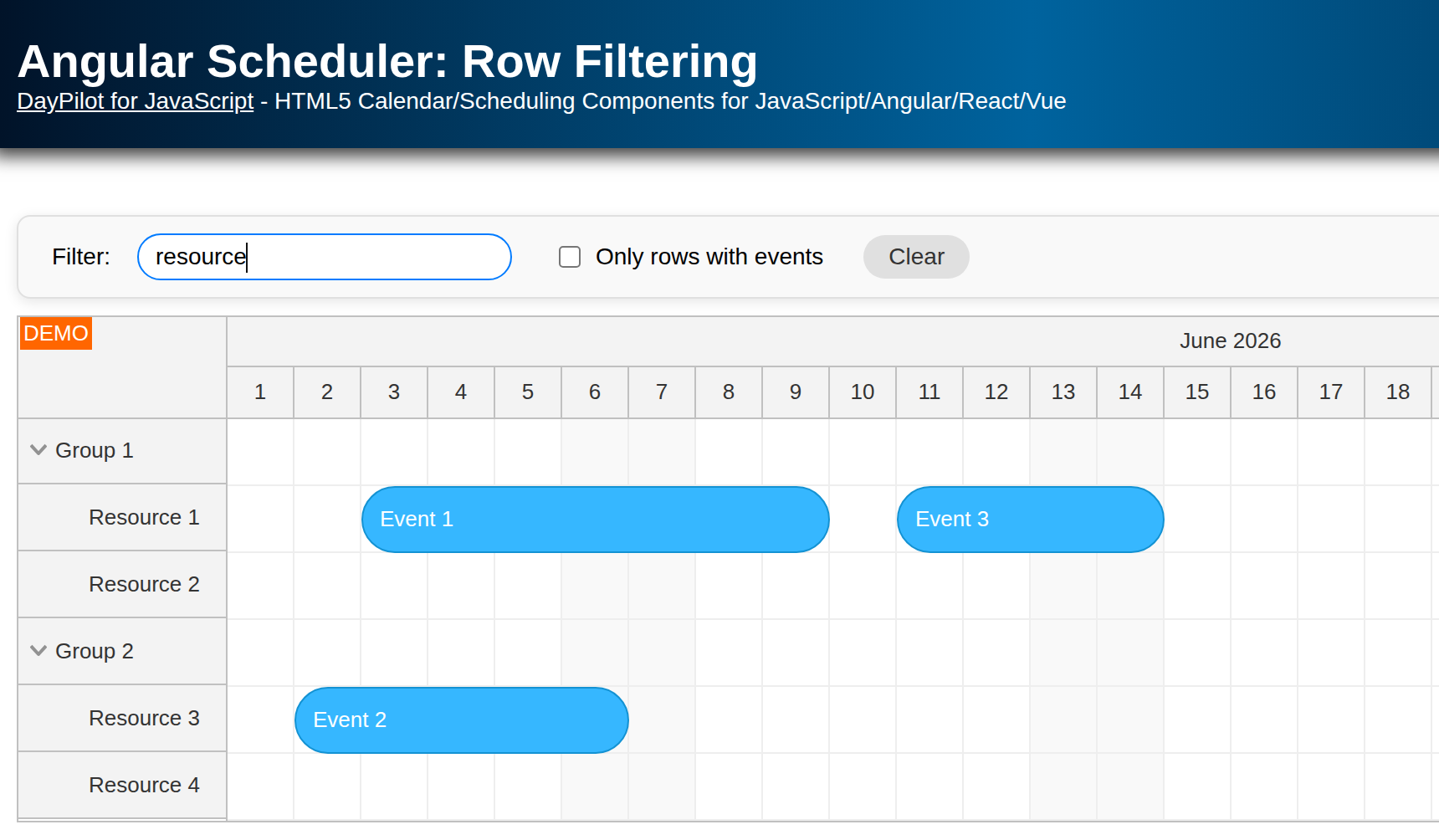

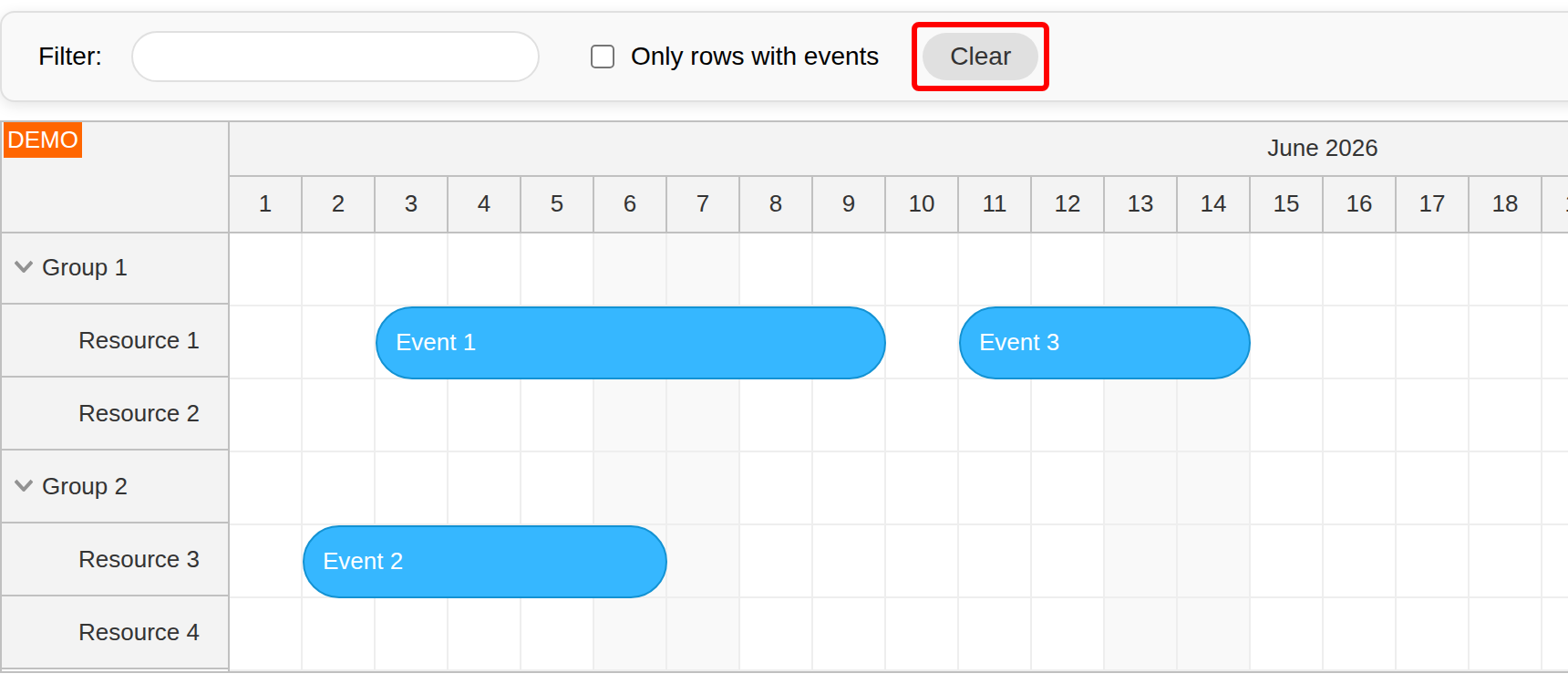

This Angular project uses the Angular Scheduler component from DayPilot Pro for JavaScript to display a timeline with tasks/events for multiple resources.
A real-time filter feature updates the list of rows depending on the search criteria.
You can filter rows by name.
You can display only rows with tasks/events.
Both filters can be combined.
Angular project with TypeScript source code is attached.
For an introduction to using Angular Scheduler, please see the following tutorial:
See also a similar tutorial on event filtering:
License
Licensed for testing and evaluation purposes. Please see the license agreement included in the sample project. You can use the source code of the tutorial if you are a licensed user of DayPilot Pro for JavaScript.
Filtering Scheduler Rows by Name

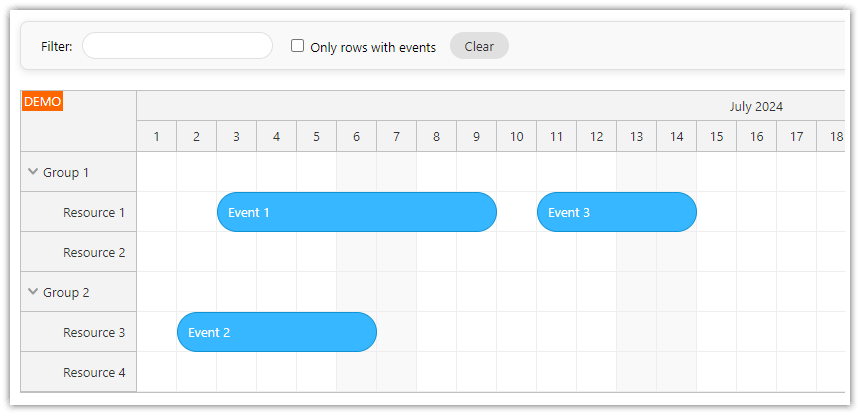

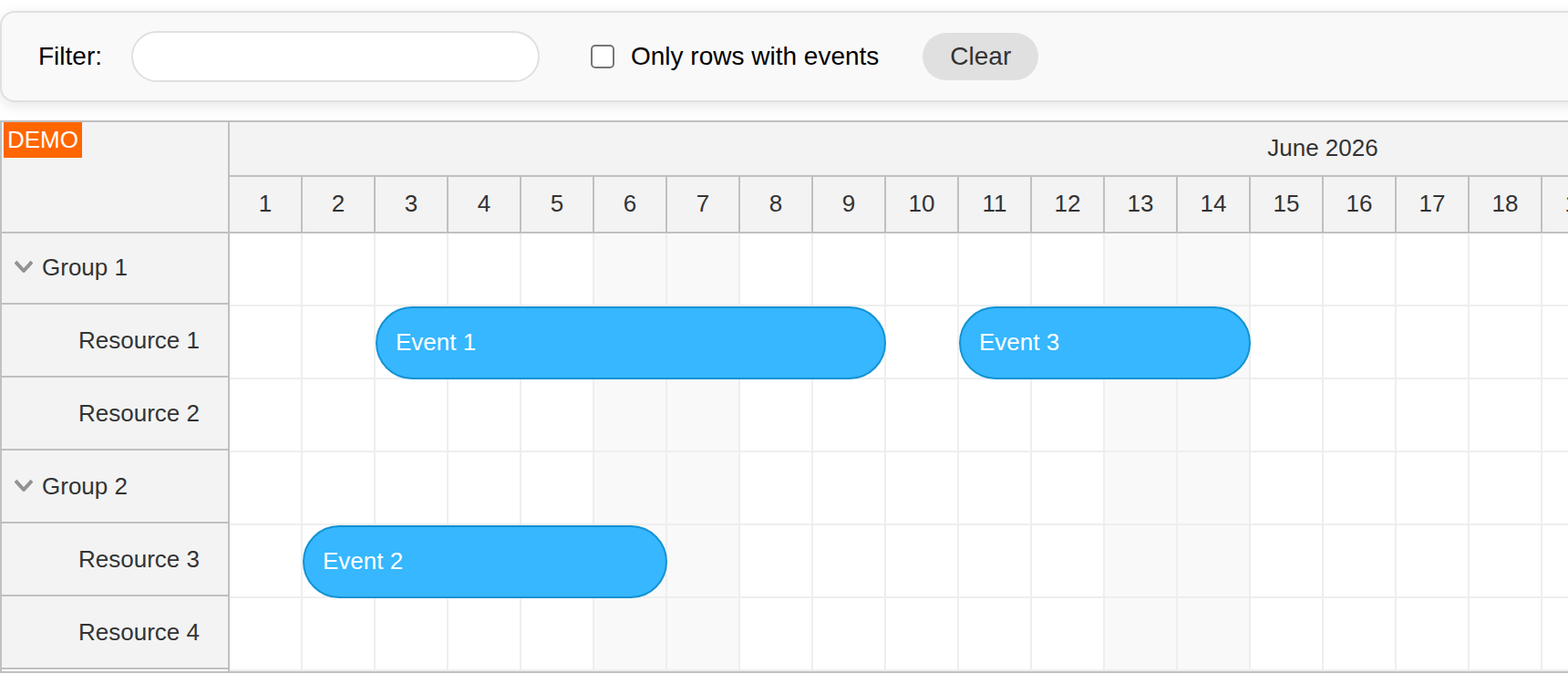

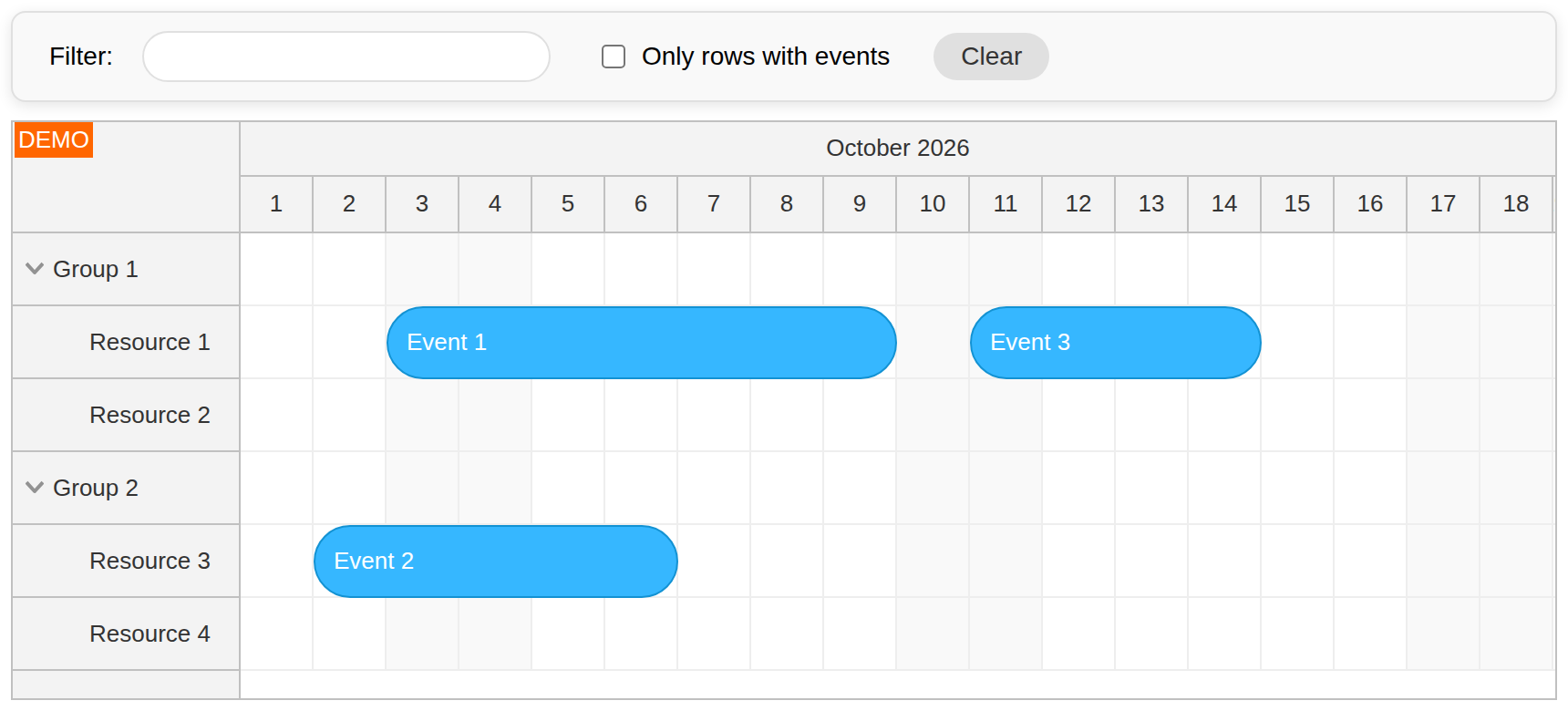

On startup, the Angular application displays the full Scheduler with all rows visible:

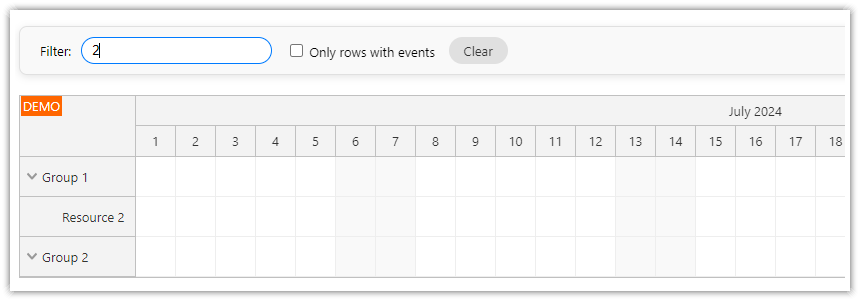

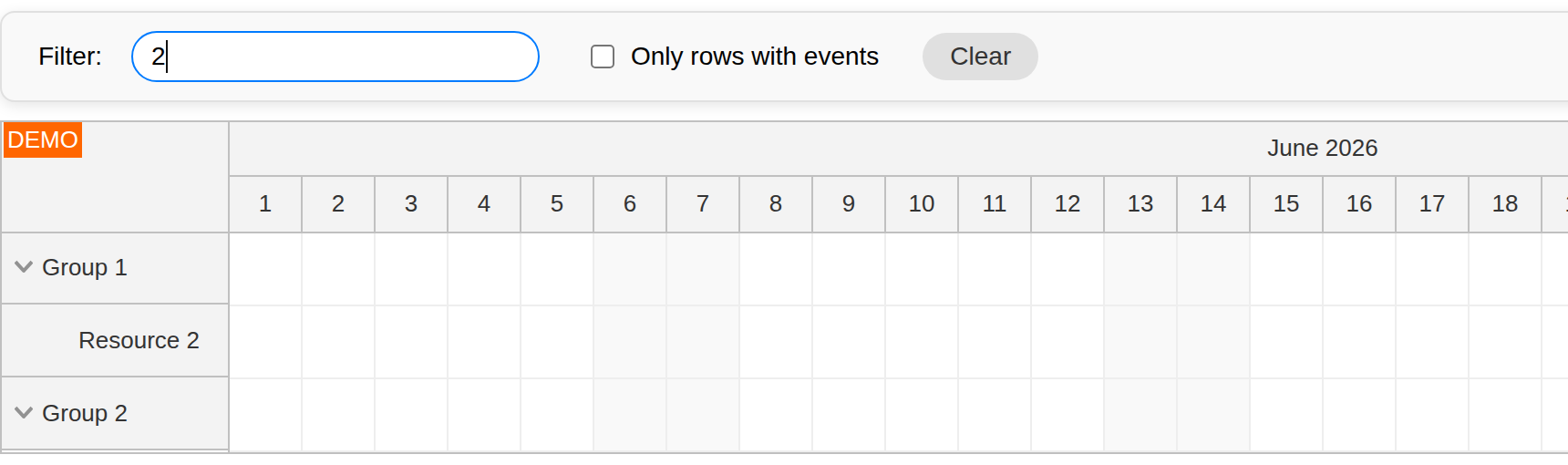

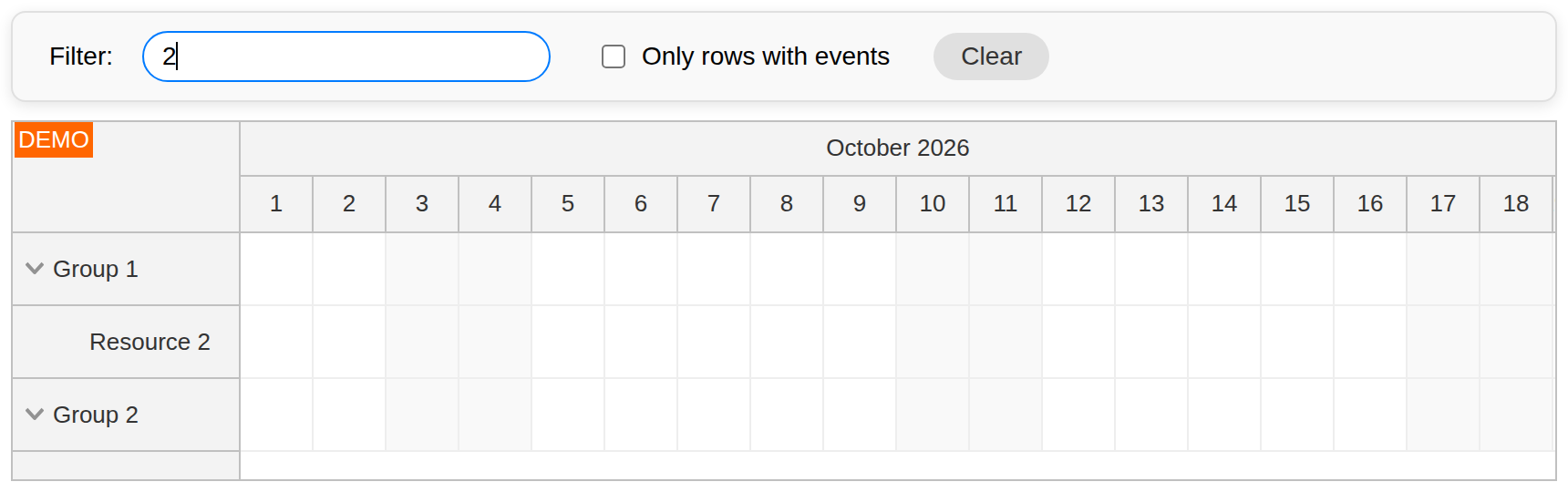

When you type text into the Filter field, the Scheduler updates immediately. Only resources containing the filter text will be displayed.
The row filter implementation consists of three parts:
The application displays a toolbar with the filter UI, including an input element for the filter text.
Whenever there's a change in the filter UI, the rows.filter() method is invoked. This method passes the filter parameters to the Scheduler and requests an update.
The onRowFilter event handler, defined in the Scheduler
config, evaluates the filter parameters for each row to determine whether a row should be visible or not.
Filter toolbar input UI:
<div class="toolbar">
<label>
Filter:
<input type="text" [ngModel]="filter().text" (ngModelChange)="changeText($event)" />
</label>
...
</div>Filter update logic:
export class SchedulerComponent implements AfterViewInit {
@ViewChild('scheduler')
scheduler!: DayPilotSchedulerComponent;
filter = signal<SchedulerFilter>({ text: '', eventsOnly: false });
changeText(text: string): void {
this.filter.update((filter) => ({ ...filter, text }));
this.applyFilter();
}
applyFilter(): void {
this.scheduler.control.rows.filter(this.filter());
}
}Row filter event handler:
onRowFilter: (args) => {
const filter = args.filterParam as SchedulerFilter;
const rowName = args.row.name.toLowerCase();
if (filter.text && !rowName.includes(filter.text.toLowerCase())) {
args.visible = false;
}
if (filter.eventsOnly && args.row.events.all().length === 0) {
args.visible = false;
}
},Rows are visible by default. The onRowFilter event handler checks the filter condition sent from the rows.filter() method (it's available as args.filterParam in the event handler). If the row doesn't meet the filter condition it's marked as not visible (args.visible = false).
Note that the parent rows will always be displayed (even if marked with args.visible = false).
Here is the full Scheduler component implementation (scheduler.component.ts):
import { AfterViewInit, Component, signal, ViewChild } from '@angular/core';
import { FormsModule } from '@angular/forms';
import { DayPilot, DayPilotModule, DayPilotSchedulerComponent } from 'daypilot-pro-angular';
import { DataService } from './data.service';
interface SchedulerFilter {
text: string;
eventsOnly: boolean;
}
@Component({
selector: 'scheduler-component',
standalone: true,
imports: [DayPilotModule, FormsModule],
providers: [DataService],
template: `
<div class="toolbar">
<label>
Filter:
<input type="text" [ngModel]="filter().text" (ngModelChange)="changeText($event)" />
</label>
<label>
<input
type="checkbox"
[ngModel]="filter().eventsOnly"
(ngModelChange)="changeWithEvents($event)"
/>
Only rows with events
</label>
<button type="button" (click)="clearFilter()">Clear</button>
</div>
<daypilot-scheduler [config]="config" [events]="events" #scheduler></daypilot-scheduler>
`,
styles: [
`
.toolbar {
display: flex;
align-items: center;
flex-wrap: wrap;
gap: 8px 14px;
margin-bottom: 10px;
}
.toolbar label {
display: inline-flex;
align-items: center;
gap: 6px;
}
`,
],
})
export class SchedulerComponent implements AfterViewInit {
@ViewChild('scheduler')
scheduler!: DayPilotSchedulerComponent;
events = signal<DayPilot.EventData[]>([]);
filter = signal<SchedulerFilter>({ text: '', eventsOnly: false });
config = signal<DayPilot.SchedulerConfig>({
timeHeaders: [
{ groupBy: 'Month', format: 'MMMM yyyy' },
{ groupBy: 'Day', format: 'd' },
],
eventHeight: 40,
scale: 'Day',
days: DayPilot.Date.today().daysInMonth(),
startDate: DayPilot.Date.today().firstDayOfMonth(),
treeEnabled: true,
durationBarVisible: false,
onRowFilter: (args) => {
const filter = args.filterParam as SchedulerFilter;
const rowName = args.row.name.toLowerCase();
if (filter.text && !rowName.includes(filter.text.toLowerCase())) {
args.visible = false;
}
if (filter.eventsOnly && args.row.events.all().length === 0) {
args.visible = false;
}
},
});
constructor(private ds: DataService) {}
ngAfterViewInit(): void {
this.ds.getResources().subscribe((result) => {
this.config.update((c) => ({ ...c, resources: result }));
});
const from = this.scheduler.control.visibleStart();
const to = this.scheduler.control.visibleEnd();
this.ds.getEvents(from, to).subscribe((result) => {
this.events.set(result);
});
}
changeText(text: string): void {
this.filter.update((filter) => ({ ...filter, text }));
this.applyFilter();
}
changeWithEvents(eventsOnly: boolean): void {
this.filter.update((filter) => ({ ...filter, eventsOnly }));
this.applyFilter();
}
applyFilter(): void {
this.scheduler.control.rows.filter(this.filter());
}
clearFilter(): void {
this.filter.set({ text: '', eventsOnly: false });
this.applyFilter();
}
}

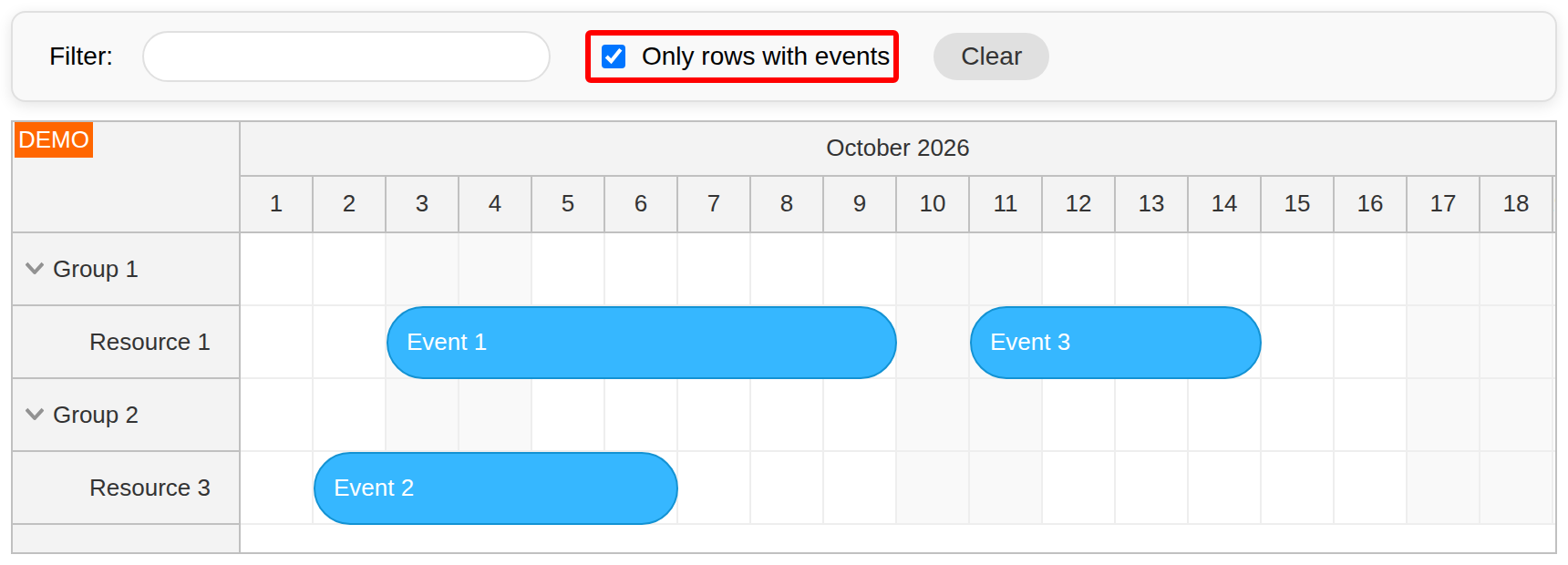

Filtering Scheduler Rows by Events

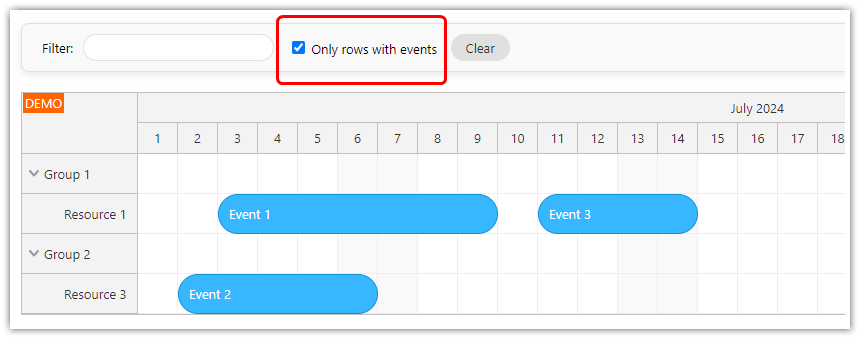

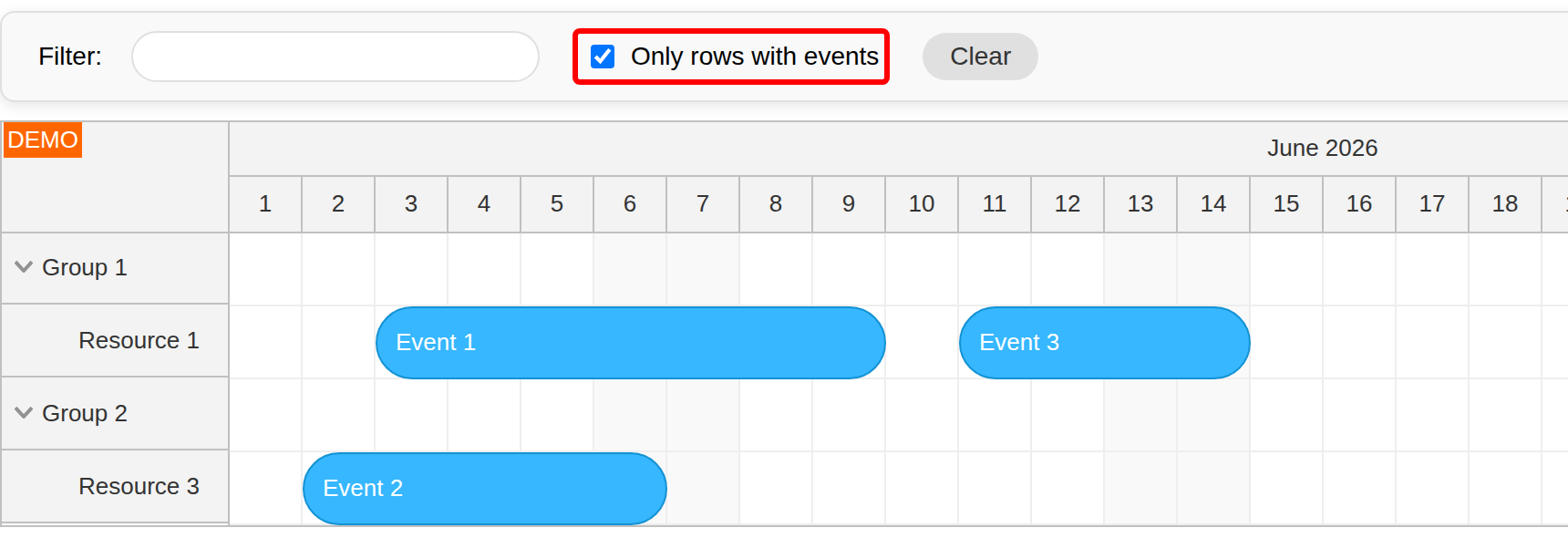

The same approach is used for filtering the rows depending on their content. The checkbox stores its state in the same filter object and applies it through rows.filter():
<label>
<input
type="checkbox"
[ngModel]="filter().eventsOnly"
(ngModelChange)="changeWithEvents($event)"
/>
Only rows with events
</label>Inside the Scheduler config, the onRowFilter event handler checks if there are any events in the row using args.row.events.all():
config = signal<DayPilot.SchedulerConfig>({
// ...
onRowFilter: (args) => {
const filter = args.filterParam as SchedulerFilter;
const rowName = args.row.name.toLowerCase();
if (filter.text && !rowName.includes(filter.text.toLowerCase())) {
args.visible = false;
}
if (filter.eventsOnly && args.row.events.all().length === 0) {
args.visible = false;
}
},
});When the checkbox value changes, the Angular component updates the signal and reapplies the Scheduler row filter:
changeWithEvents(eventsOnly: boolean): void {
this.filter.update((filter) => ({ ...filter, eventsOnly }));
this.applyFilter();

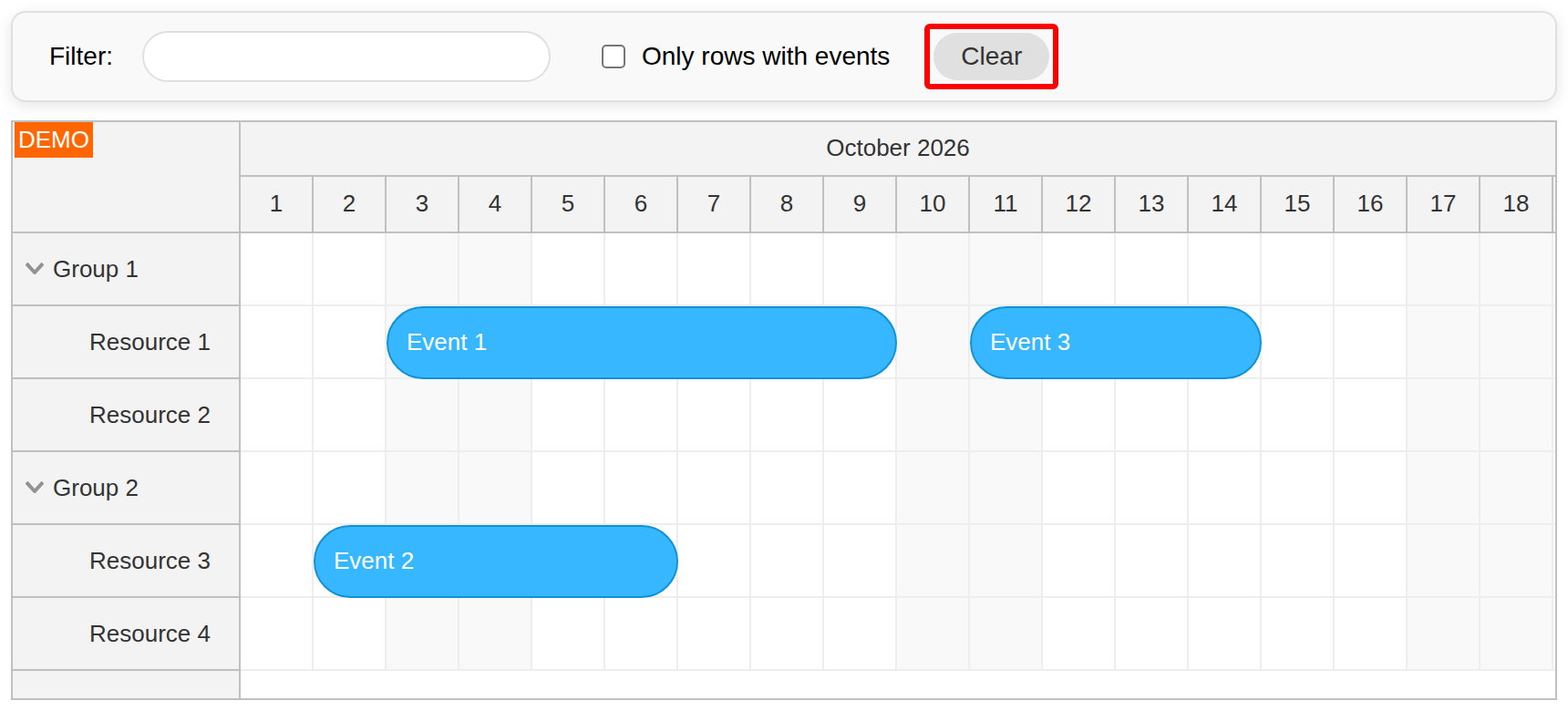

}Clearing the Filter

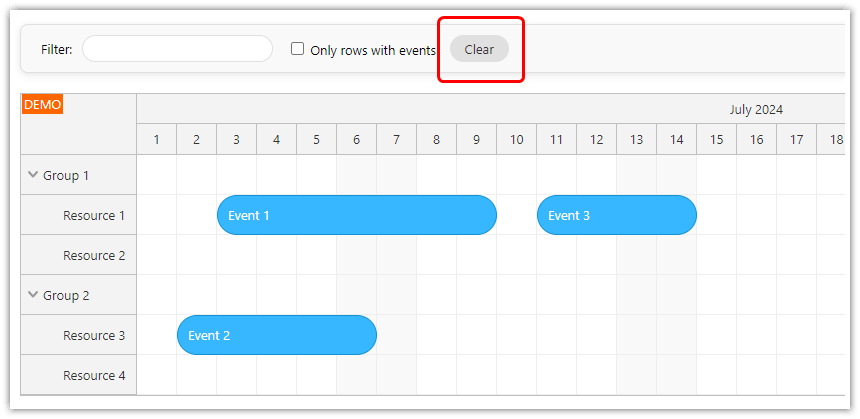

In order to clear the filter, reset the signal value and apply the filter again:
clearFilter(): void {
this.filter.set({ text: '', eventsOnly: false });
this.applyFilter();
}History
June 5, 2026: Updated to Angular 21 and signal-based Scheduler state.
